Single Disc Check ValveThis kind of check valve is mainly used for systems in the industries of petroleum, chemistry, textile, paper- making, water supply and drainage, metallurgy, energy etc.
Collect
Product No. 0955
Product Description
Single one way Wafer Type swing Disc Check ValveTechnical data:

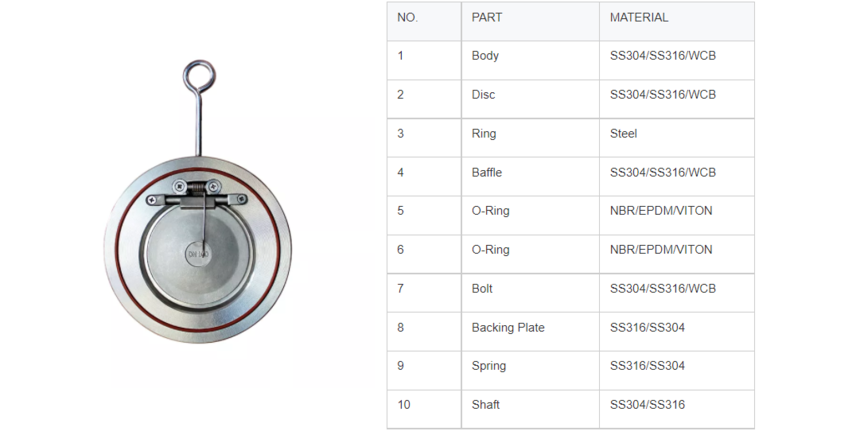

Meterial of main parts
Usage: This kind of check valve is mainly used for systems in the industries of petroleum, chemistry, textile, paper- making, water supply and drainage, metallurgy, energy etc.
Product Parameters
DESCRIPTION 1. Working pressure: 1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa 2. Working temperature: NBR: 0℃～+80℃ EPDM: -10℃～+120℃ VITON: -20℃～+180℃ 3. Face to face according to DIN, ANSI 4. Flange according to EN1092-2, ANSI 125/150 etc. 5. Testing: DIN3230, API598 6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc. |
|||||||||||||||||||||||||||||||||
